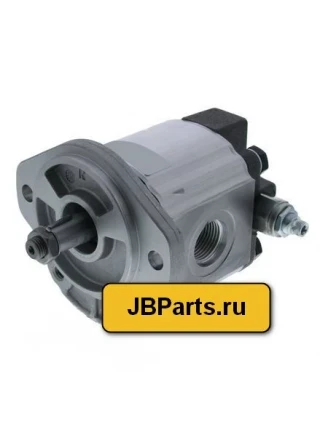

Гидравлический мотор JCB 20/925518

Описание

Гидравлический мотор JCB 20/925518

20925518

Parker 3349210036

Гидромотор вентилятора

Type of hydraulic motor

on the rear + on the side

Length L1 (mm)

161.2

Type of flange TY-Fl

type A

Neck diameter D2 (mm)

82.5

Number of mounting holes AT-GA

2

Diameter D3 (mm)

10.7

Centre distance C (mm)

106.5

Type of shaft TY-AS

type E

Distance L3 (mm)

40

Shaft diameter D4 (mm)

14.9

Key width B (mm)

3

Thread type TA2

M12

Pitch metric Pm2 (mm)

1.5

Number of connections

3

Thread type TA3

1 1/16 UNF

Pitch imperial Pi3

12

Second thread type TA4

9/16 UNF

Pitch imperial Pi4

18

Вес (кг): 3,9

запасные части JCB 436; 446; 456; 426; 456e; .456; .426; .436; .456e; 446;
